WJ Hidden winch bumper
1999-2004 Jeep Grand Cherokee recessed winch bumper

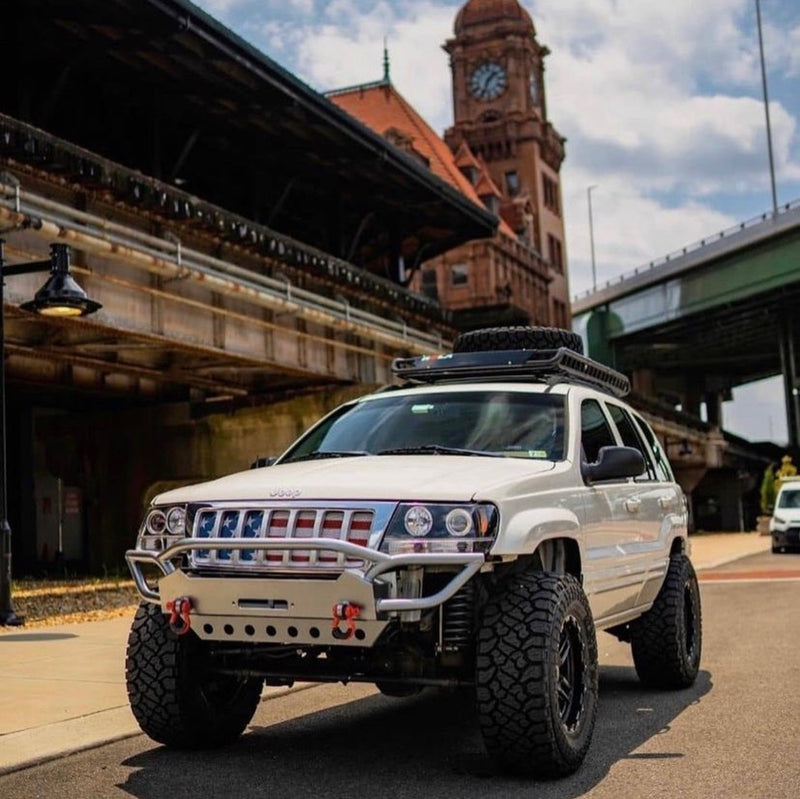

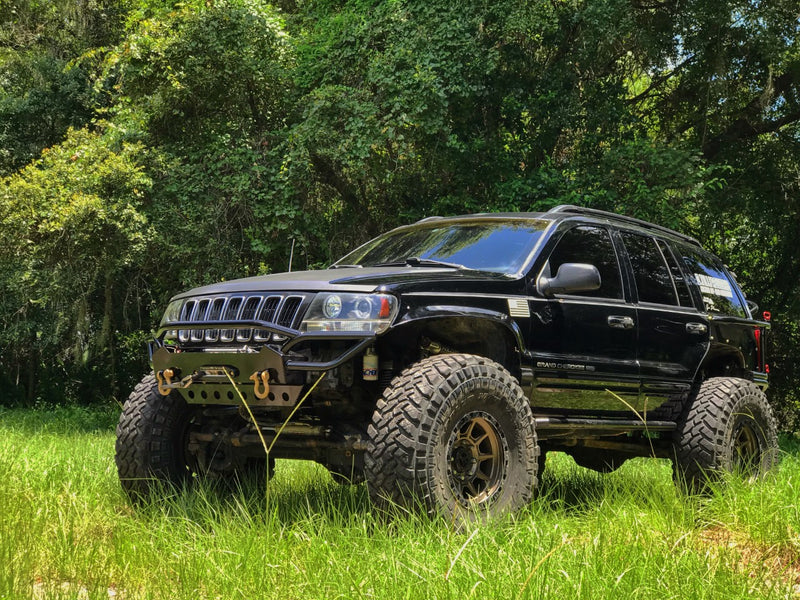

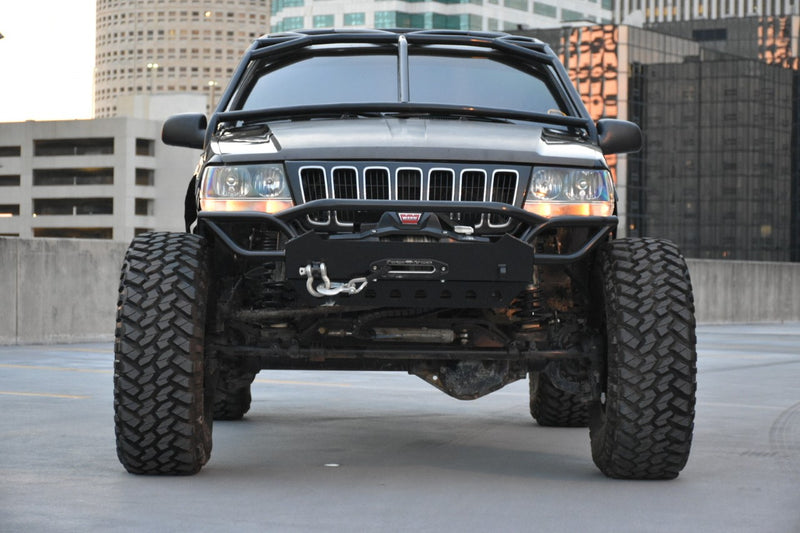

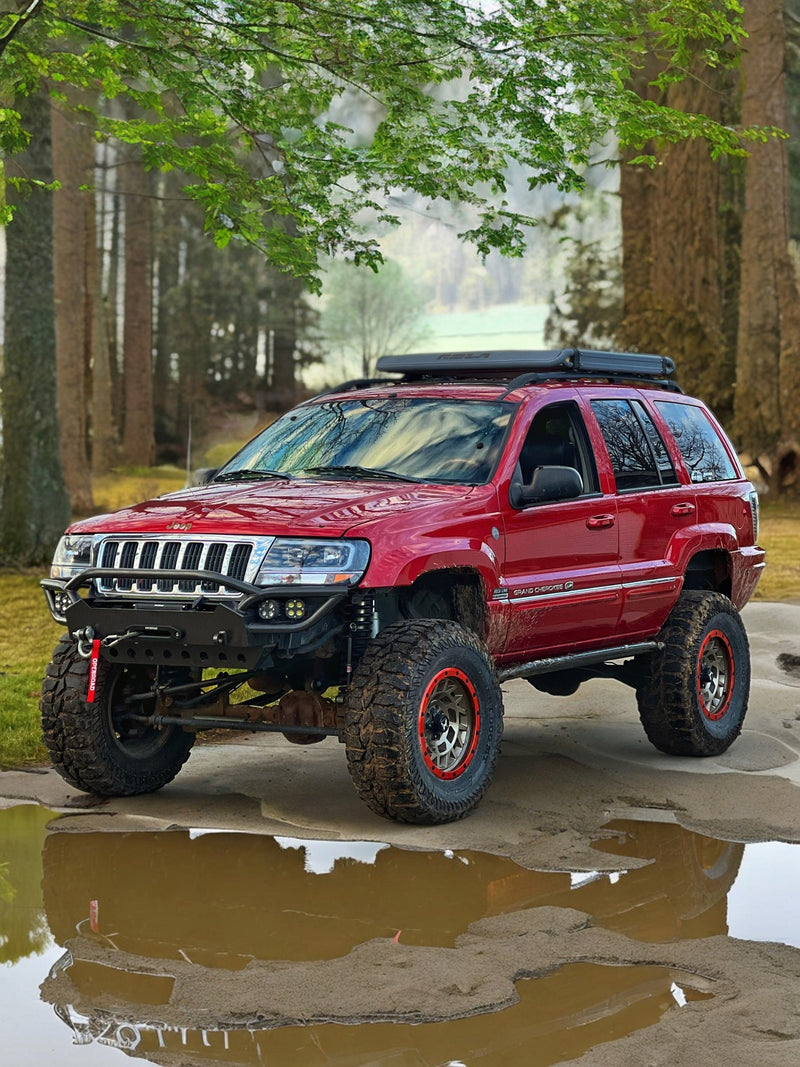

The WJ hidden winch bumper was designed to accommodate over sized tires while seamlessly flowing with the WJ's sleek/curved body style. Avoiding the bulky/boxy steel plates, the 1.75" OD 0.120" wall tubing used for these bumpers keeps them light weight while adding the perfect protection to the headlights and grille. The recessed design of this bumper tucks the winch underneath the grille giving you the best approach angle possible while still being able to accommodate a full size winch.
- Made from CNC laser cut 3/16" steel
- Fully boxed and internally gusseted for superior strength
- Minimalist design making it the lightest hidden winch bumper, avoiding the unnecessary heavy plate that weighs your Jeep down
- Able to fit Warn Zeon series winches
- 10 points of attachment utilizing 8, 1/2" grade 8 bolts and 2, grade 10.9 M10 bolts
- Integrated hood supports
- Welded through 3/4" thick shackle tabs
- 1.75" OD 0.120" wall tubing
- All hardware included
*light tabs will be placed inside the outer wings, if you would rather them else where just send us an email!

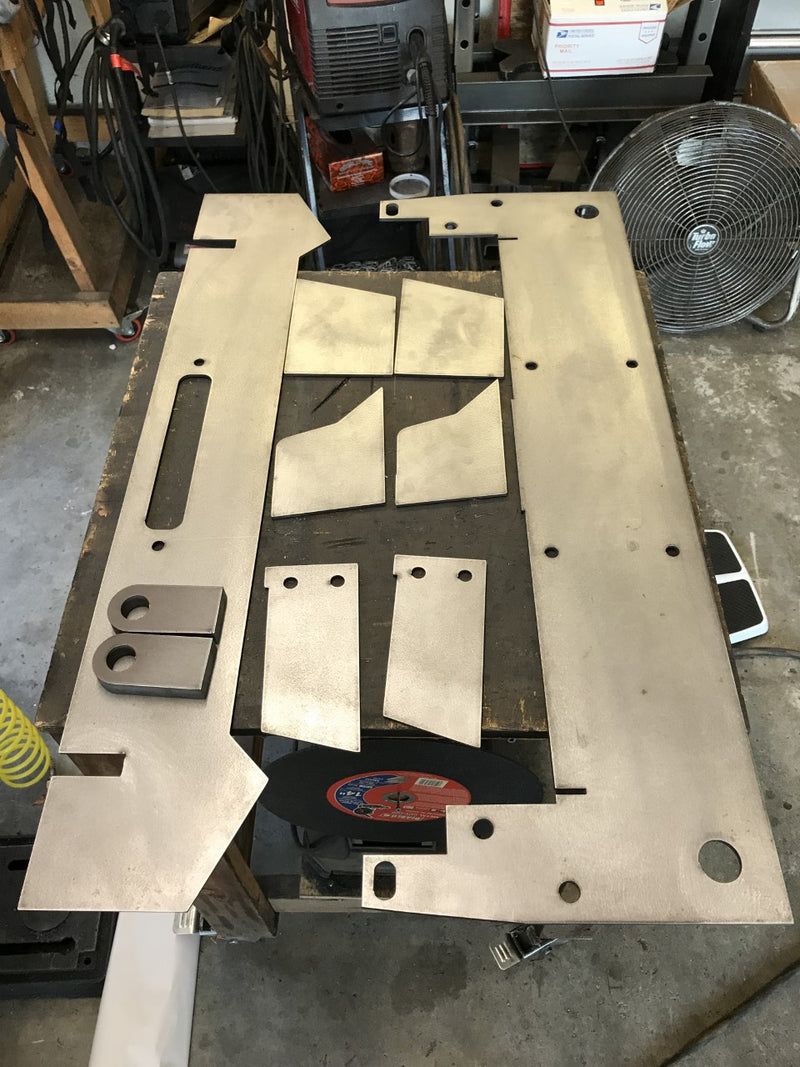

*The DIY kits are meant to be welded by competent welders that are familiar with metal fabrication. The DIY kits come with all the laser cut plates and hardware needed to assemble the bumper as well as all the pre bent tubing if that option is selected. It is recommended to weld the tubing onto the bumper after the winch box has been fully welded together and installed on the Jeep, this is to ensure proper tubing line up with the headlights.
Please allow 1-2 weeks for shipment
